Monsal AU
Hoist Details

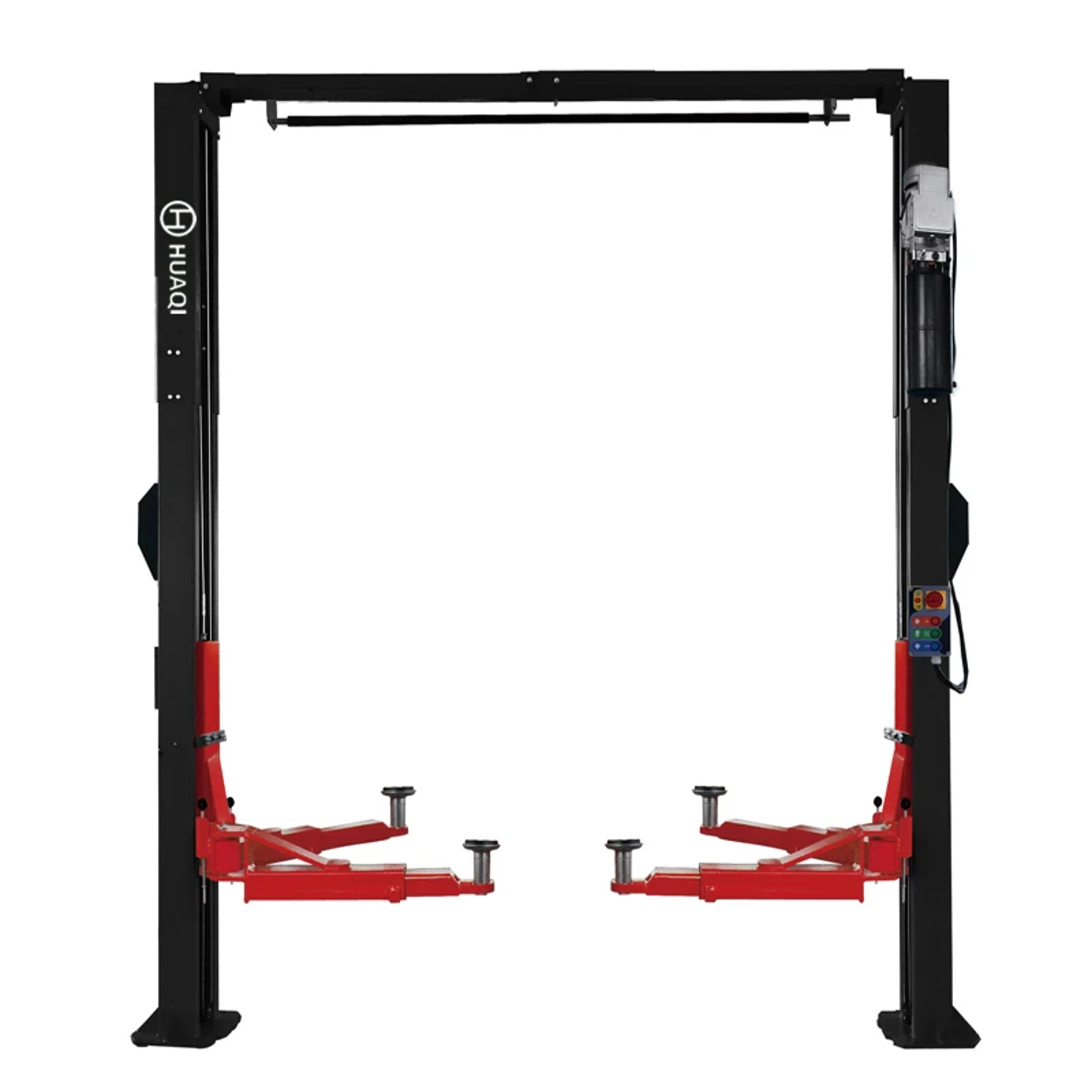

Clear Floor Hoist Dual Folding arms 4.5Tonne Rating
Features and Specifications
- 2 Stage Extension Arms
- Comes with double hydraulic rams with 8mm control equalization cables for double the safety
- Dual-cylinder lifting system, more stable and faster.Cable-equalization system
- Chain-driven system, faster lifting speed.
- Single lock release system, safe and reliable.
- Wear-resistant, heat-resistant and high strength macro molecular polyethylene slide blocks
- Adjustable high quality screw type lift pads
- Also Comes With Bonus Pad Height Extenders
- Also comes with concrete anchors for installation of hoist
- Wider Width Between Posts To Allow You To Access Car Easier
- Driven by double hydraulic cylinders
- Chain type elevating system.
- With the stabilization system of high grade steel wire cable, it ascends and descends smoothly .
- Single side manual safety lock release system.
- Powder coated finish.
- Adjustable high quality screw type lift pads

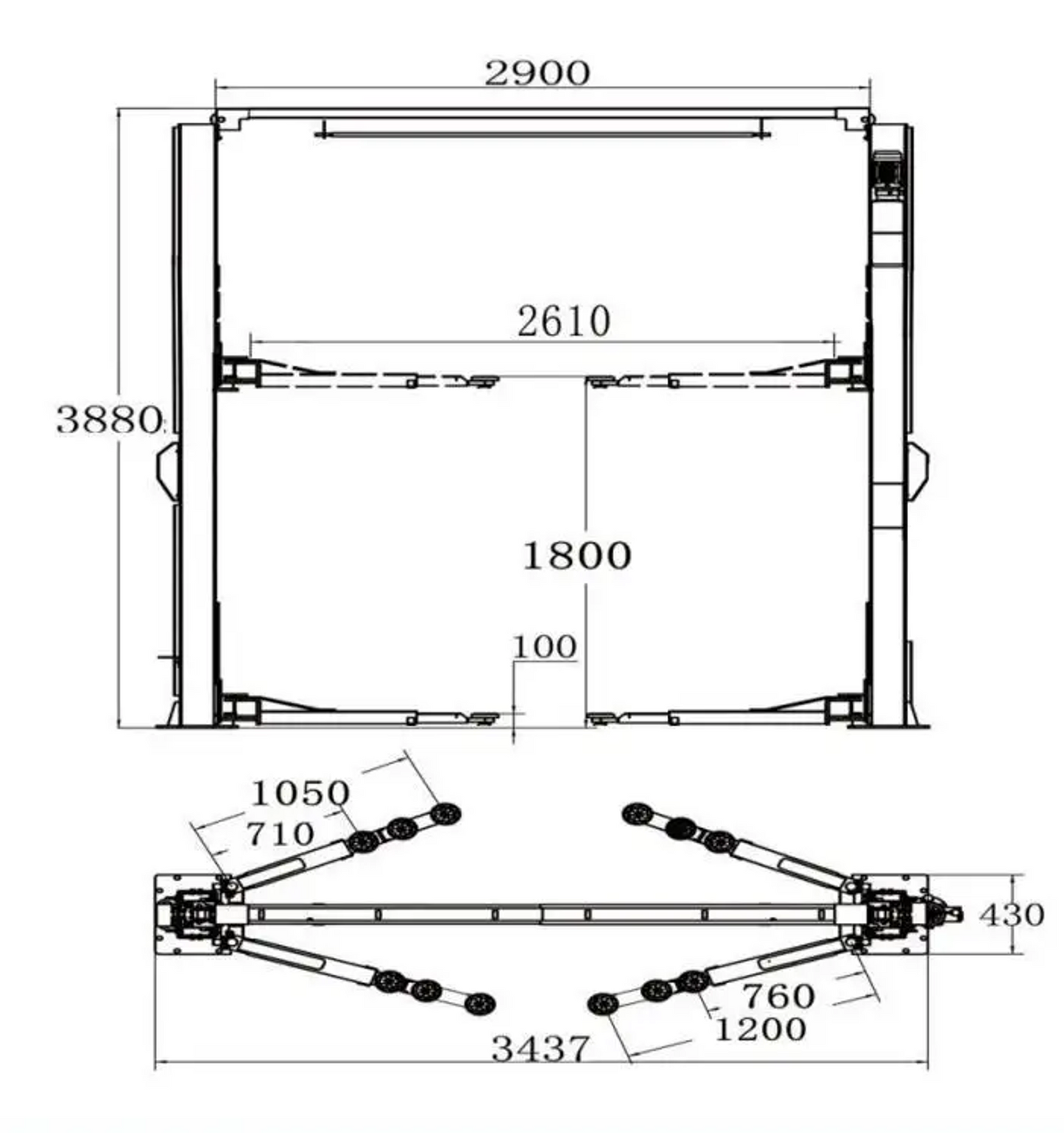

Technical Parameters
- Capacity------------------------------4500 KG
- Lifting Height ----------------------1800 mm
- Lifting Time--------------------------60-65 S
- Overall Width----------------------3437 mm
- Inside Column----------------------2900 mm
- Voltage-------------------------------240v
- Motor Power------------------------2.2 KW
- Rated Oil Pressure-----------------20MPA
- Noise----------------------------------< 80 DB
Included?
- 2 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Concrete anchor bolts
- Detailed installation instructions
- Power Lead Connected
- Delivery to local depot included in pricing
What’s Not Included?
