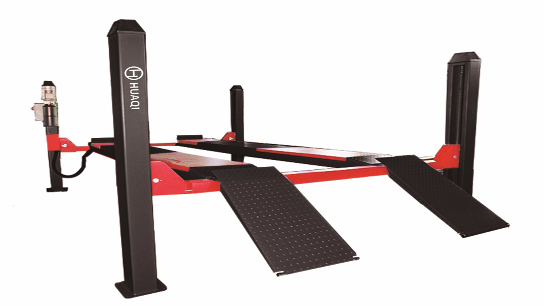

4 Post Wheel Aligner hoist with included Drip Trays and Hydraulic Sliding Jack
This 4 post hoist can be used for repair or parking. Hoist is supplied with integrated hydraulic rolling jack. This hoist has 3.5T capacity with 4200 long runways

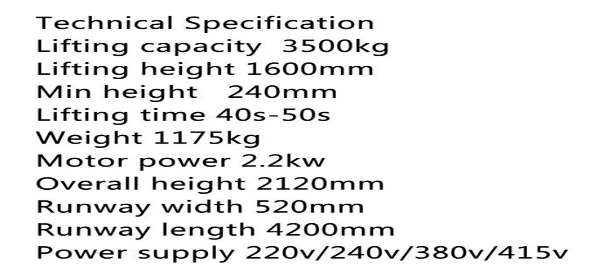

Features and Specifications
3500kg safe load limit
Lifting Height 1600mm
Lifting time 50 s

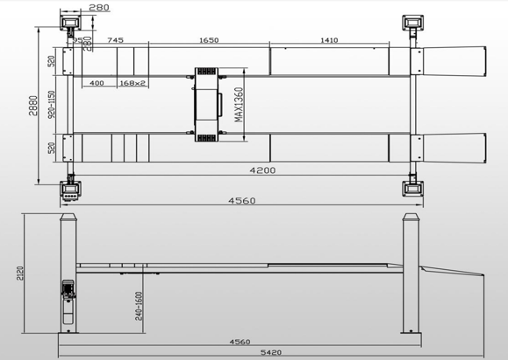

Overall Width 2880 mm
Overall Lengt 4560 mm
Overall Height 2120mm
Runway Width 529MM
Runway length 4200
Powder coated finish
Max drive through clearance 2190mm
Four point automatic safety locks
Safety locks in all posts
Single point manual release
Safety Features
Manual safety locking system with safety latches in each column
Dual point release system
12mm steel wire rope equalising cables
Anti-surge valve in the hydraulic power unit
What’s Included?
4 post storage hoist with all bolts, cables, lines and fixings

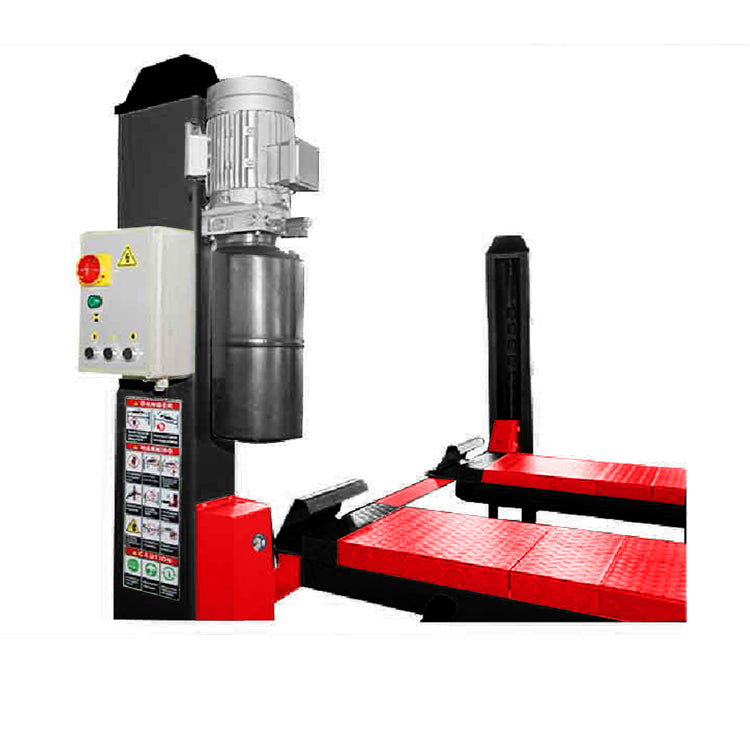

240V single phase hydraulic power unit
Concrete anchor bolts
Detailed installation instructions
Power Lead Connected
Drip trays and Hydraulic Sliding Jack included in the price
