Technical Parameters
Voltage 240V
Power 1.1kw
Turntable Rotation 7RPM
Max Wheel Dia 920mm
Tyre Width 3-13"
Rim Clamp from Outside 10-17"
Rim clamp from Inside 12-20"
Working Pressure 8-10 Bar
Net Weight 160kg
Application range:
Applicable for changing and inflating car tyres whose rim diameter is between 10”-24”.
Machine Function
1. The motion structure of the four self centring clamping
jaws on the turntable is a linked mechanism which has
a synchronising and self centring action when clamping
from outside to inside.
2. One-step moulding design of mobile slider prevent deformation
3. The turntable has self centring and fine adjustment
function which demounts the tire easier and smoother.
4. Low Noise

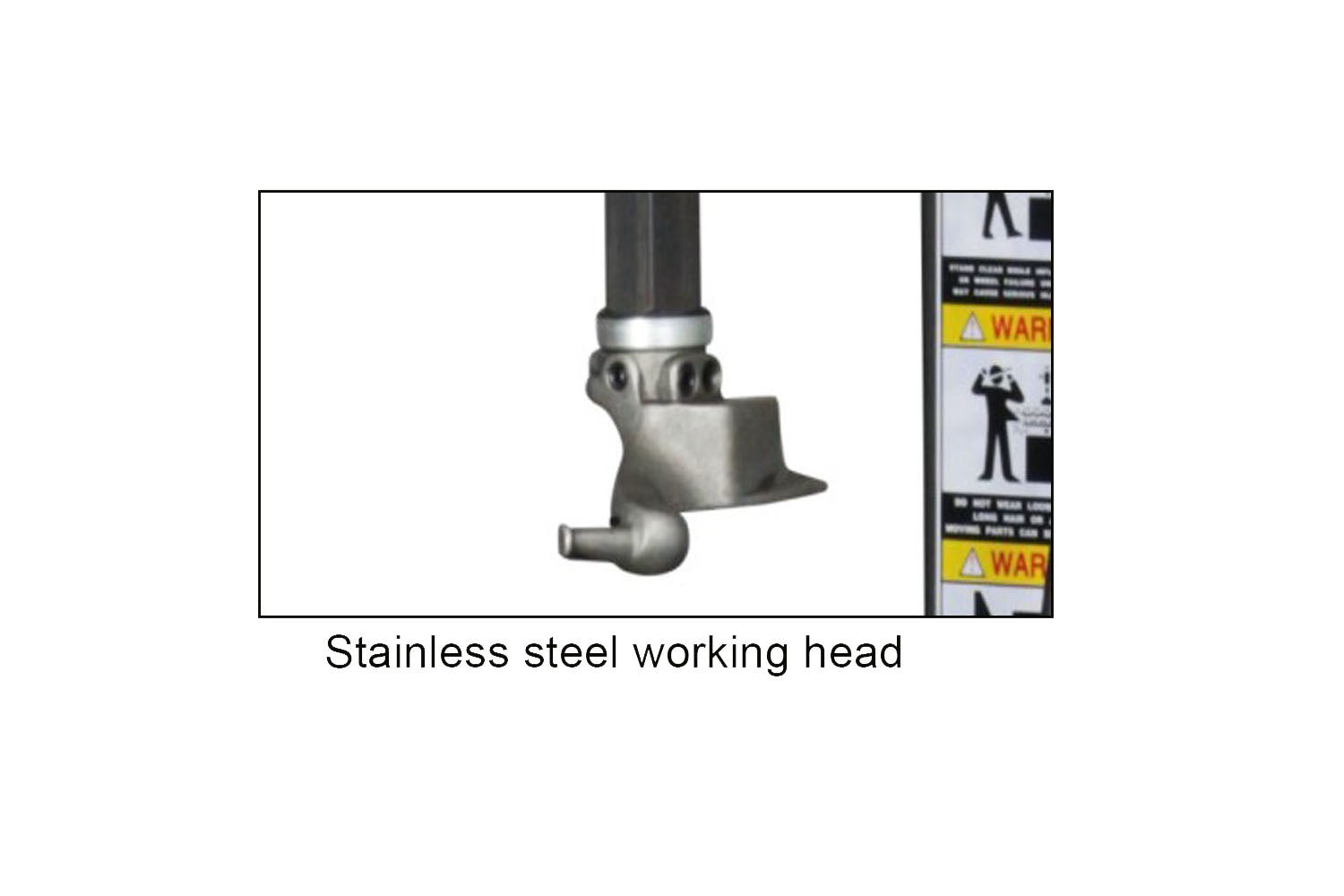

5. Equipped with protective sleeves and pads to working
head, clamping jaws, and bead breaker, avoiding damage to
the rim.
6. Body design with thick sheet material, strong
rigidity
8. Universal bead breaker,.
9. Iron stamping pedal, durable for life of machine
10. Able to change the clamping range by adjusting the position of
the slid
11. Optional Motorcycle Adaptor
