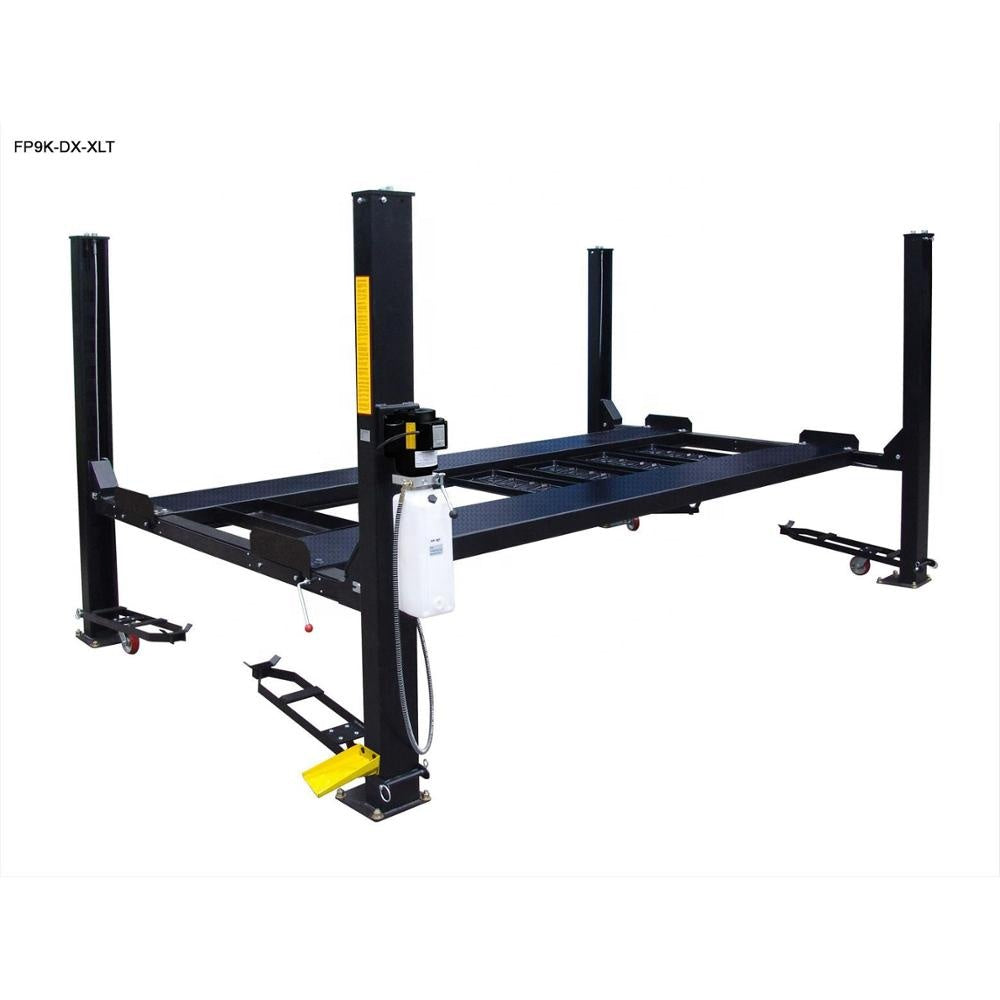

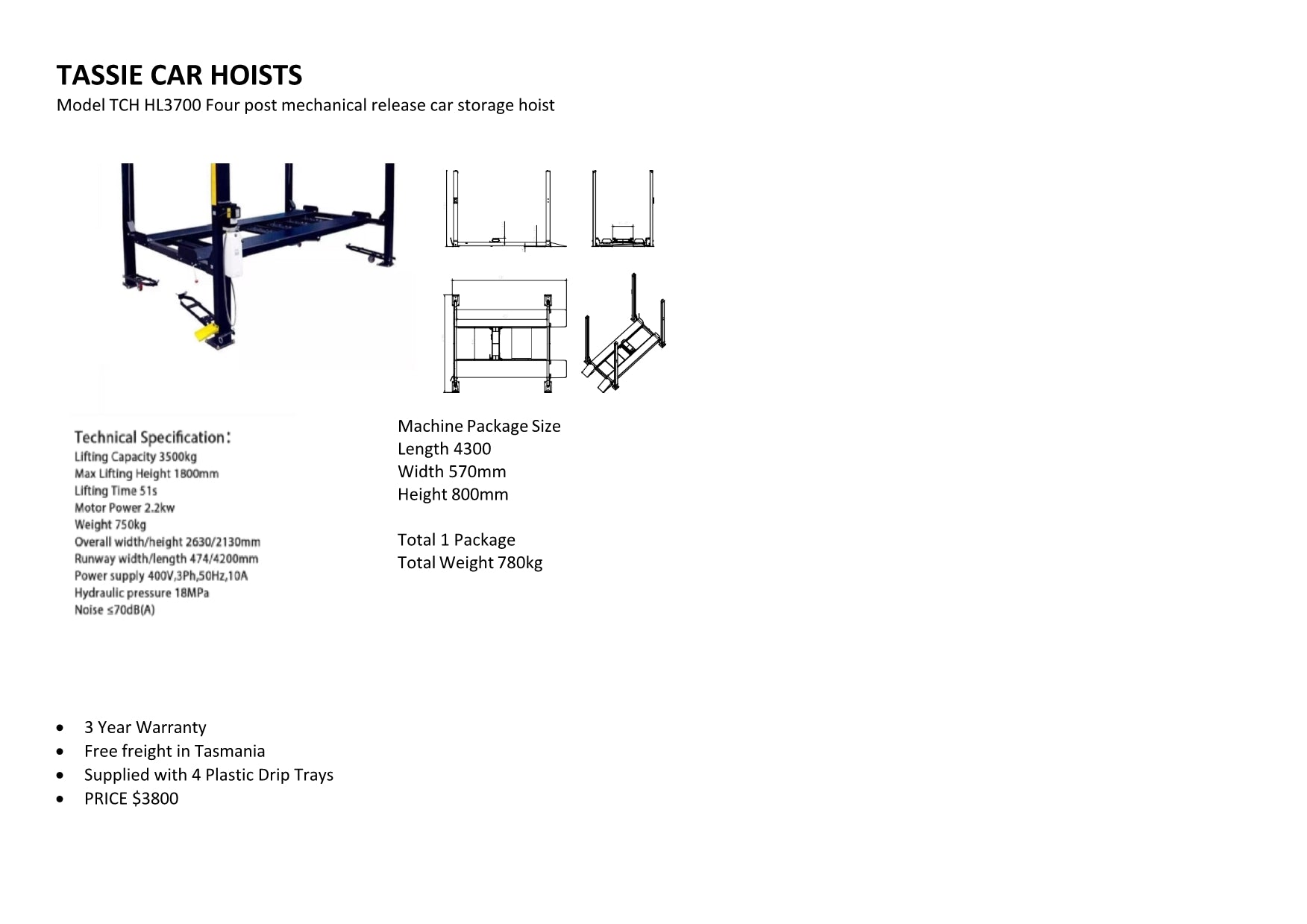

3.5 T 4 Post Car Storage hoist Model TCH HL3700

4 Post Car Storage hoist with included Drip Trays and Tool Holder/Jacking Plate

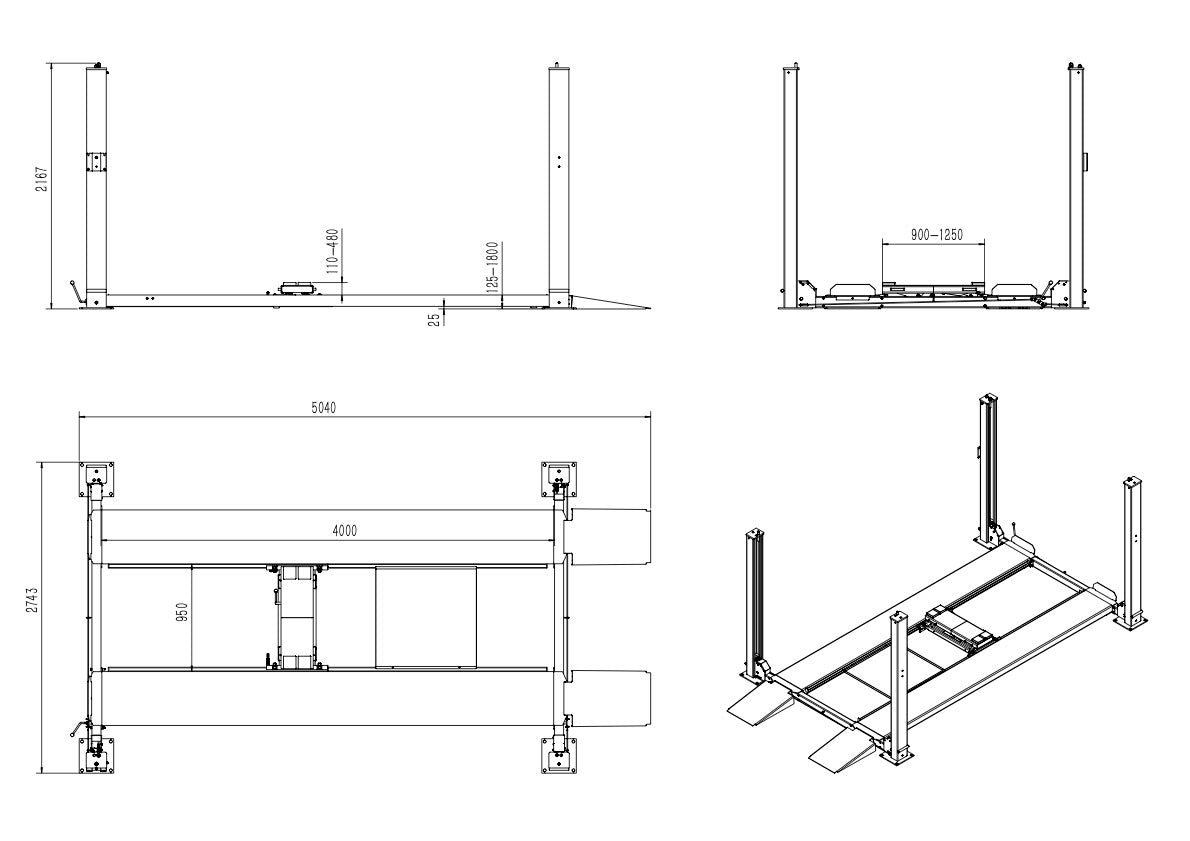

Features and Specifications

• 3500kg safe load limit
• Lifting Height 1800mm
• Lifting time 51 s
• Overall Width 2743mm
• Overall Lengt 5040mm
• Overall Height 2167mm
• Runway Width 474 MM
• Runway length 4200
• Powder coated finish
• Max drive through clearance 2398mm
• Four point automatic safety locks
• Safety locks in all posts
• Single point manual release
• Rolling Jacks are available for this lift

Safety Features

• Manual safety locking system with safety latches in each column
• Dual point release system
• 12mm steel wire rope equalising cables
• Anti-surge valve in the hydraulic power unit

What’s Included?

• 4 post storage hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts
• Detailed installation instructions
• Power Lead Connected
• Drip trays and Tool Storage/Jacking plate included in the price

What’s Not Included?

• Hydraulic oil
