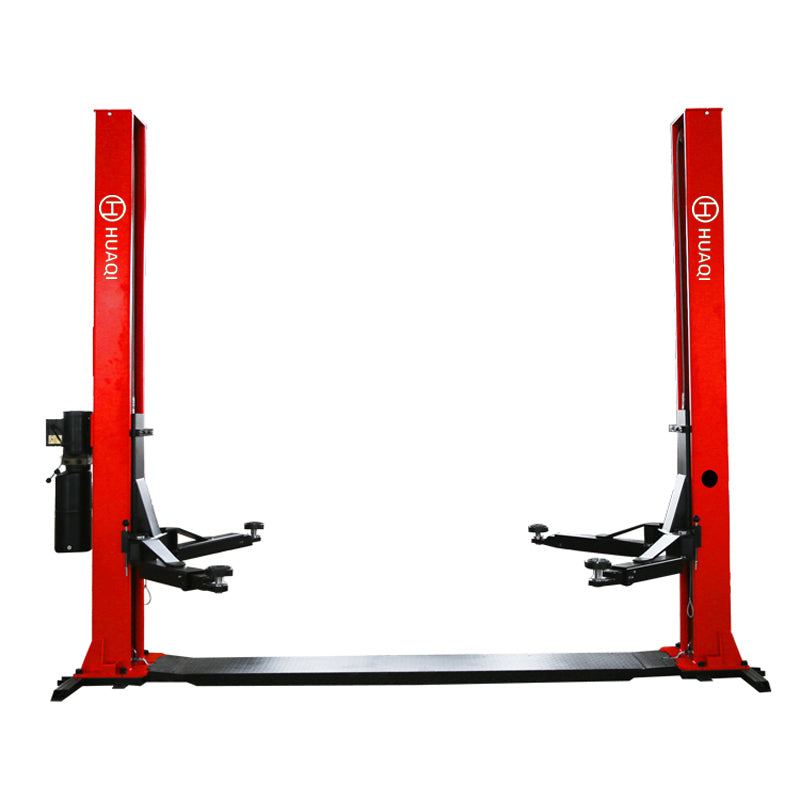

4.5 Ton 2 Post Base Plate Car Hoist dual point release Model TCH YL140B

Base Plate Hoist Details

This hoist is suitable for garages or sheds with thinner concrete and low ceiling height

Features and Specifications

• 4500kg safe load limit
• Lifting Height 1900mm
• Lifting time 55 s

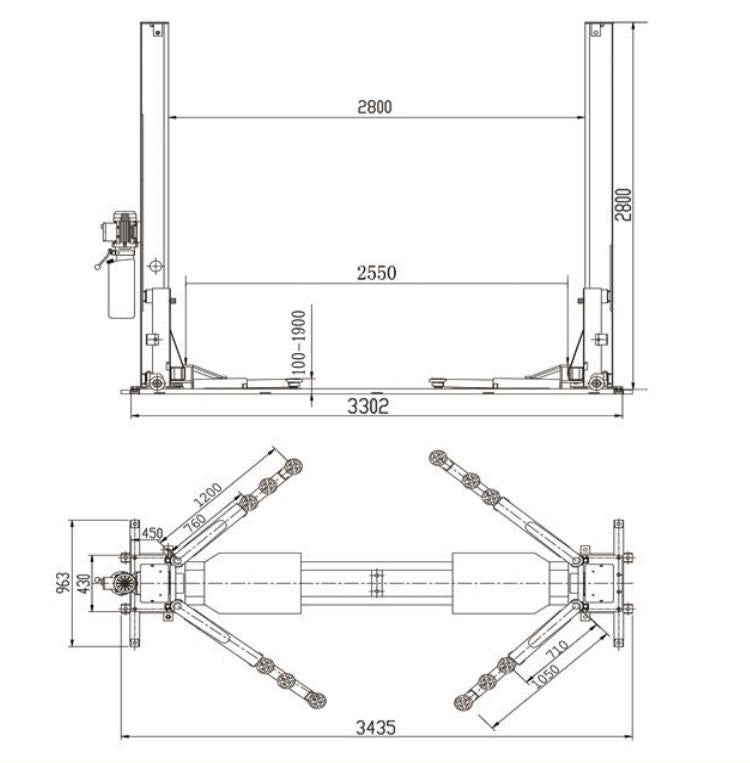

• Overall Width 3435mm
• Inside Column 2800mm

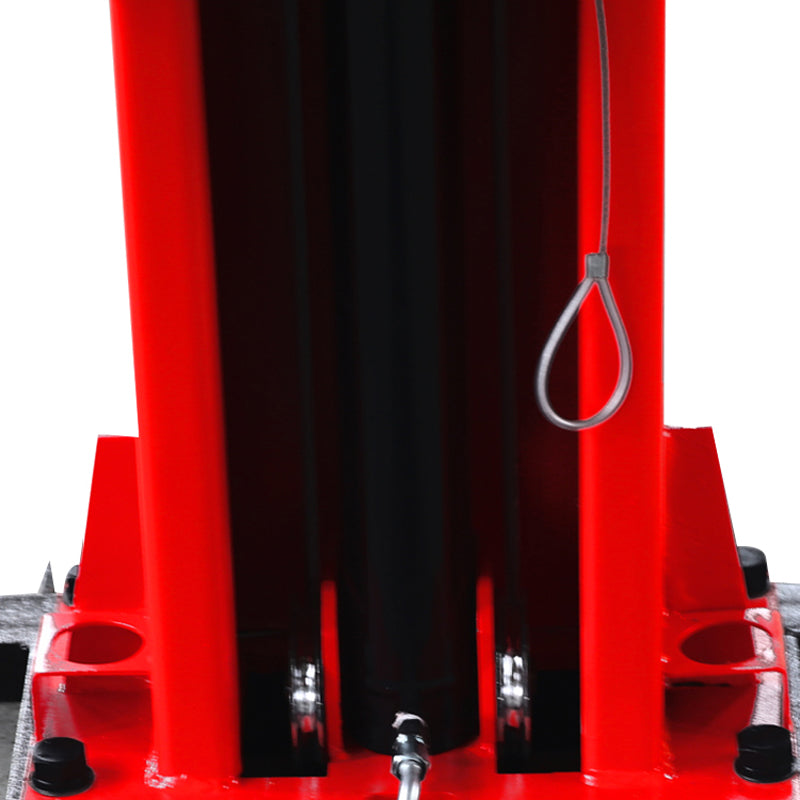

• Heavy duty bottom plate for thinner concrete
• Powder coated finish

Safety Features

• Manual safety locking system with safety latches in each column
• Dual point release system
• 10mm steel wire rope equalising cables
• Anti-surge valve in the hydraulic power unit

What’s Included?

• 2 post hoist with all bolts, cables, lines and fixings

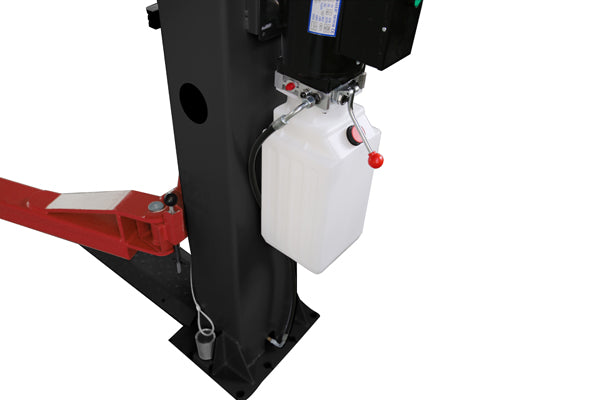

• 240V single phase hydraulic power unit
• Concrete anchor bolts
• Detailed installation instructions
• Power Lead Connected

What’s Not Included?

• Hydraulic oil
